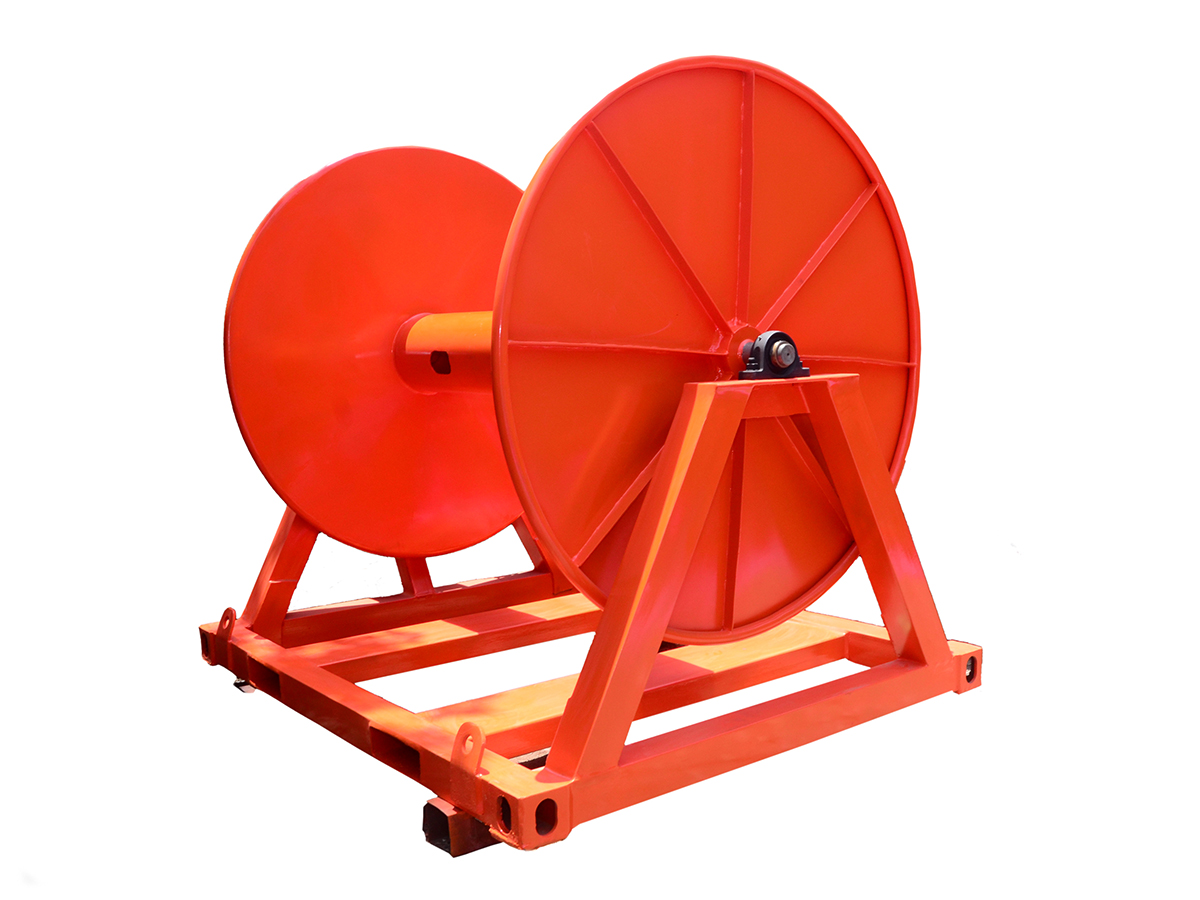

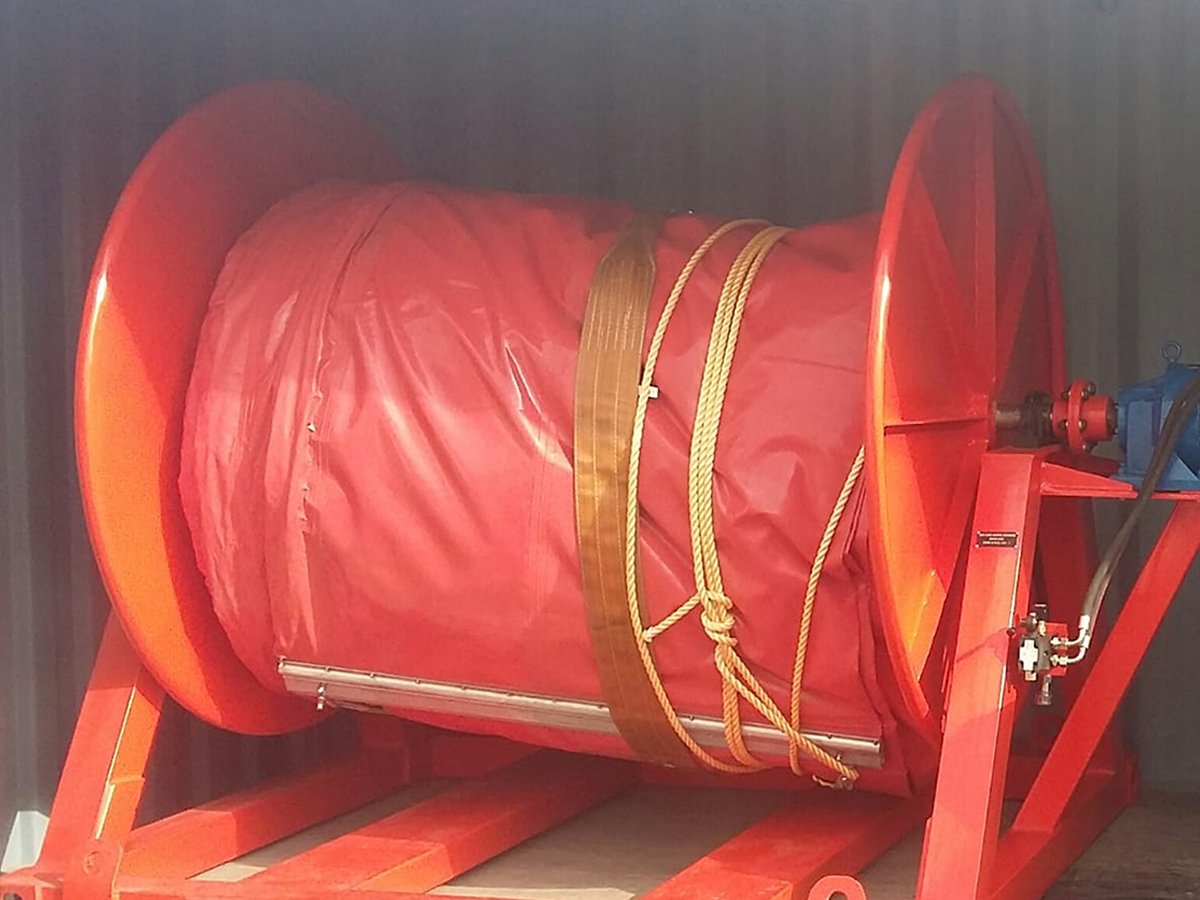

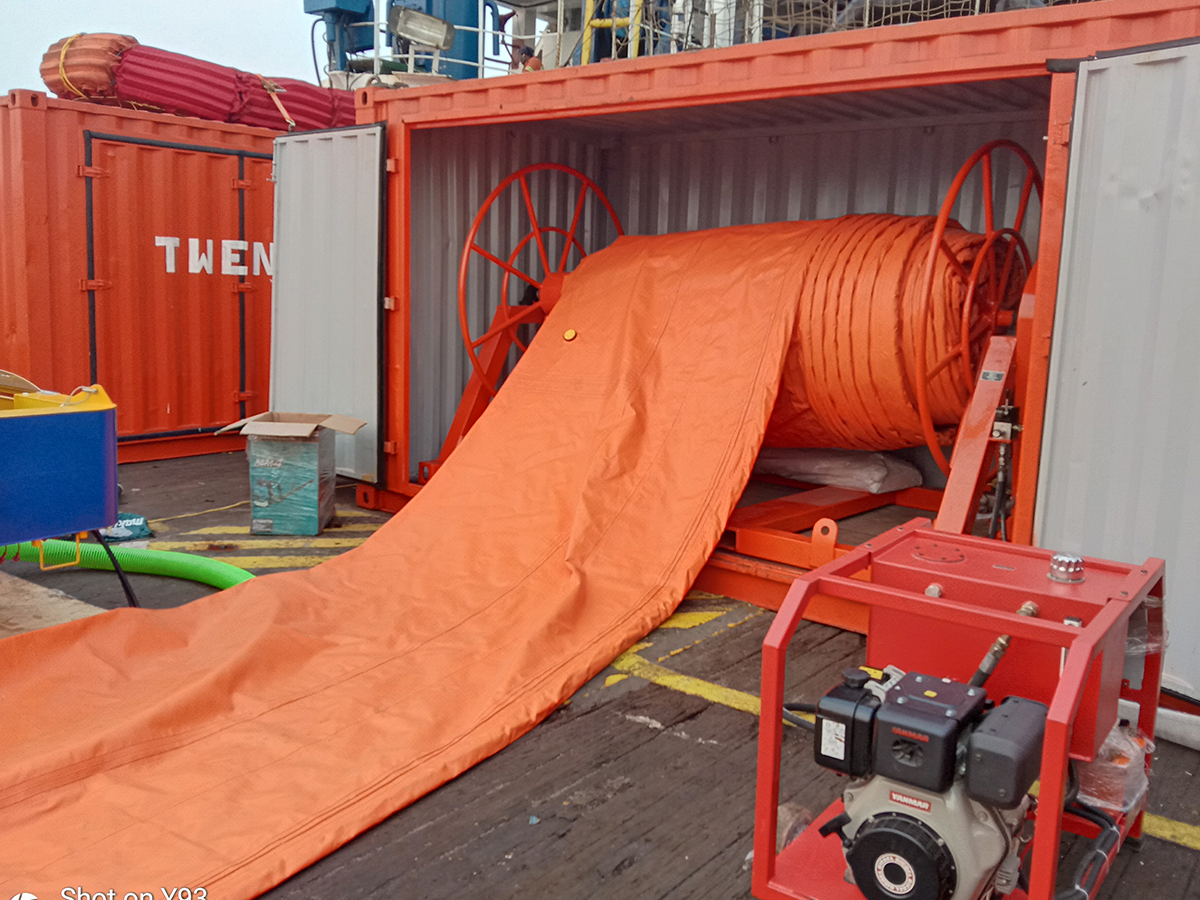

| Specification | SCMS-BR1 | SCMS-BR2 | SCMS-BR3 | SCMS-BR4 |
|---|---|---|---|---|
| Dimension(approx.) | 1x2x2.2 | 2x2x2.2 | 3x2x2.2 | 4x2x2.2 |
| Weight (kg) | 600 | 700 | 800 | 900 |
| Capacity for Boom | 100 M | 200 M | 300 M | 400 M |
| Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor | Hydraulic motor with Planetary reducer |
| Frame Material | Mild Steel | |||
| Paint | Powder Coat | |||
| Lifting Points | Fork lift pockets and 4 point lifting eyes | |||
| Other Material | Aluminum / Stainless steel | |||

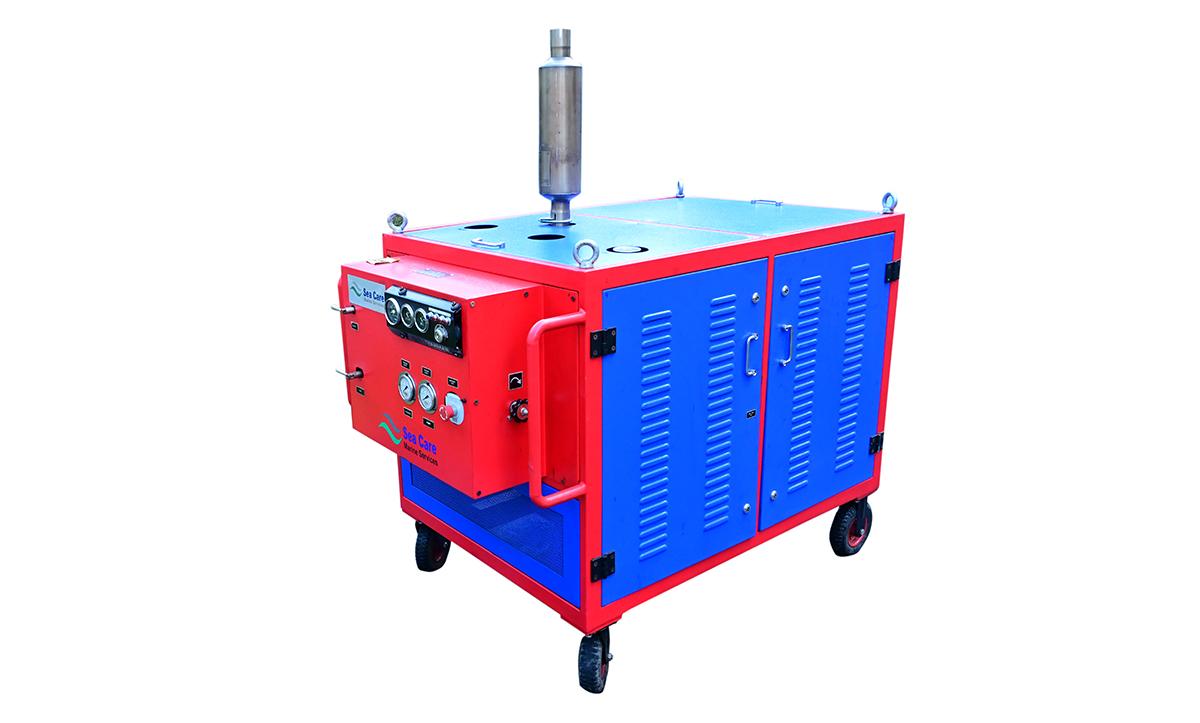

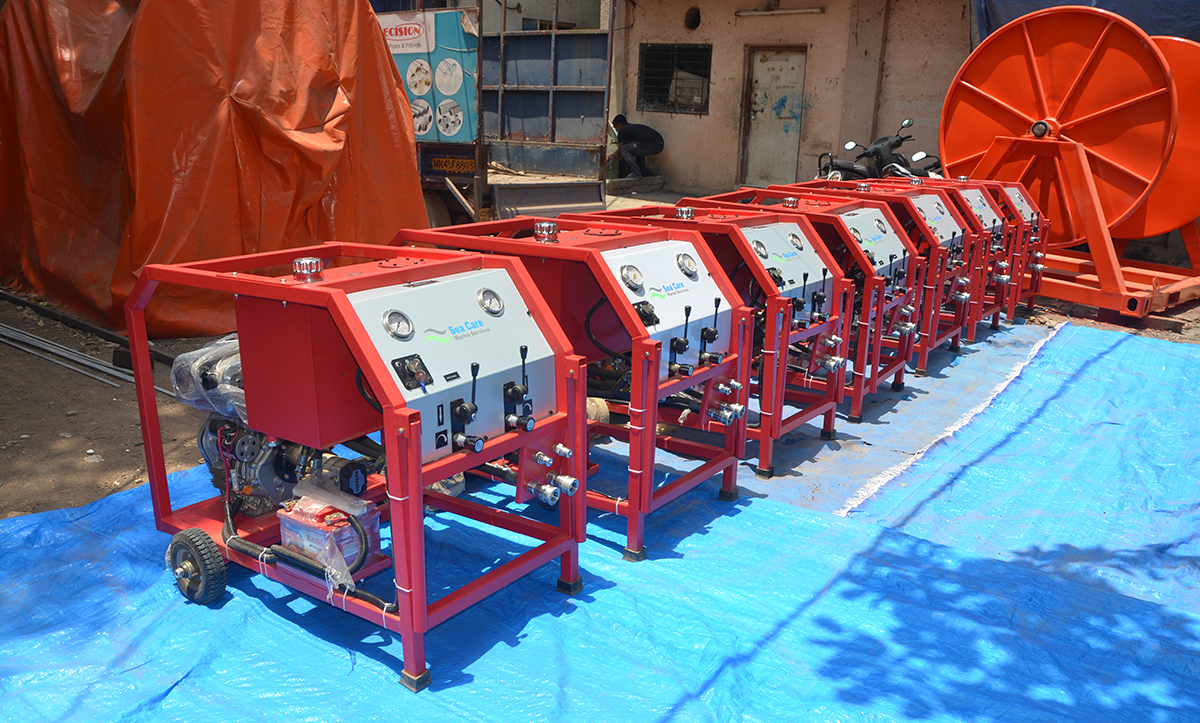

| Specification | SCMS-PP5 | SCMS-PP8 | SCMS-PP10 | SCMS-PP20 | SCMS-PP25 | SCMS-PP40 |
|---|---|---|---|---|---|---|
| Engine Power | 5 HP | 8 HP | 10 HP | 20 HP | 25 HP | 40 HP |
| Type | Diesel, Air-Cooled | |||||
| Dimensions(cm) | 76x51x63.5 | 100x60x70 | 100x70x80 | 127x85x95 | 110x70x113 | 264x152x152 |
| Weight(Dry)(kg) | 100 | 150 | 200 | 200 | 400 | 720 |
| Hydraulic output (Max.) | 3 GPM | 5 GPM | 5 GPM | 12 GPM | 14 GPM | 20 GPM |
| Operating Pressure (Max.) | 2000 psi | 2000 psi | 2000 psi | 2500 psi | 2500 psi | 2500 psi |
| Oil Reservoir Capacity | 15 L | 20 L | 20 L | 30 L | 90 L | 114 L |
| Hydraulic Oil | HTP46 | |||||
| Features |
Speed control and 2 or 3 way control valve Hydraulic oil level view and temperature window Easy move Wheel Kit / fixed on floor eye |
|||||
| Specification | Details |
|---|---|
| Anchor Chain | 5mtrs, 8mm hot dipped galvanized |
| Anchor Rope | 30mtrs, 12mm Polypropylene |
| Anchor | 20kg buoyancy hot dipped galvanized |
| Trip Line | 3mtrs, 12mm Polypropylene |
| Trip Line Float | 20cm Polystyrene buoyancy |
