Oil Containment Booms

  • Home
  • Products
  • Oil Containment Booms

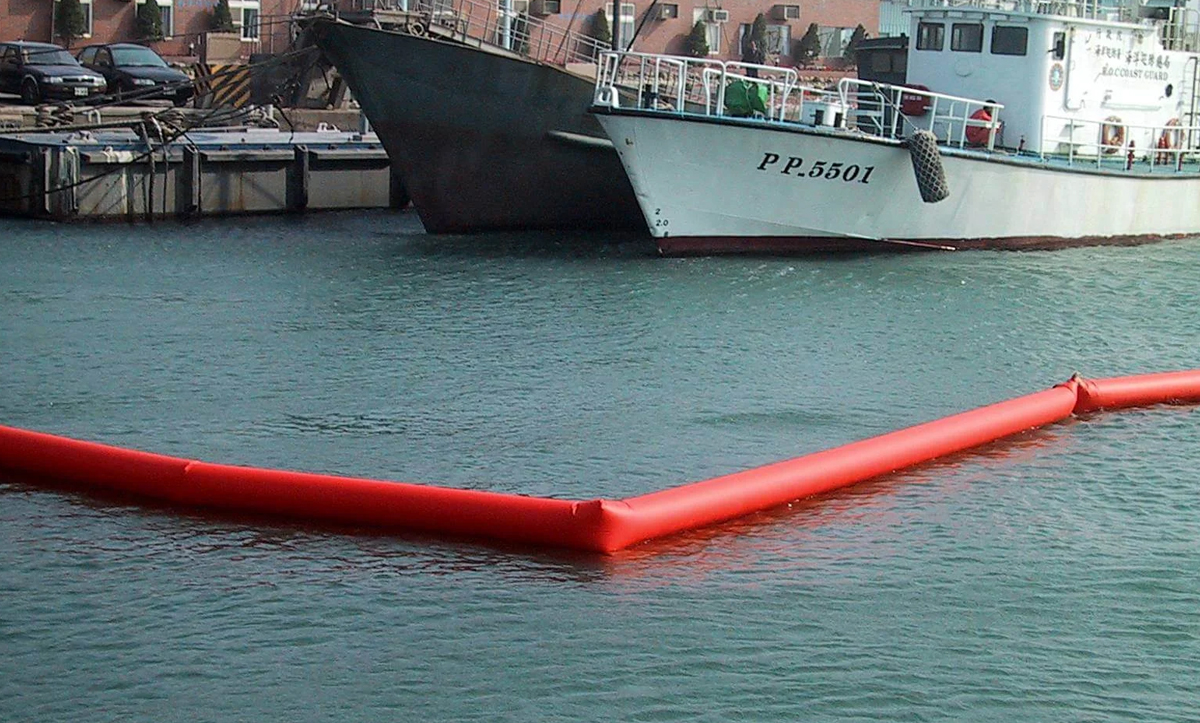

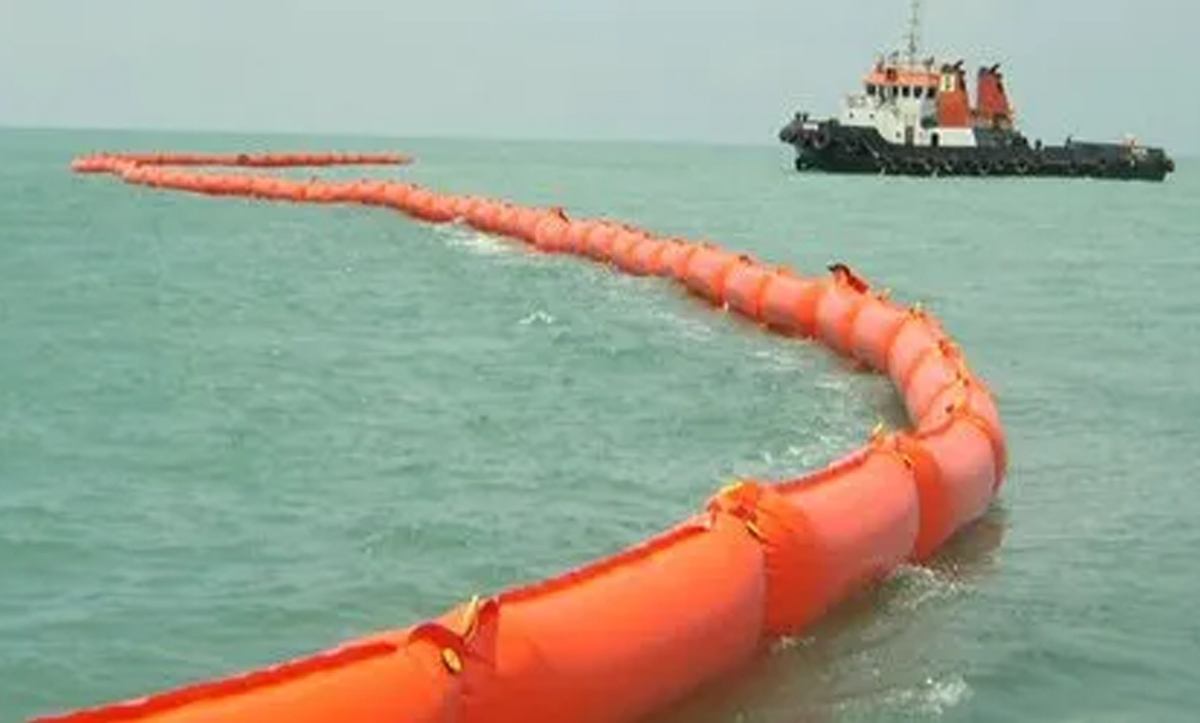

1. Pressure Inflatable Booms

  • Fits to use in offshore and marine for containing oil spill
  • Comparing with others, its size is the smaller and weight is the lighter
  • Higher Buoyancy

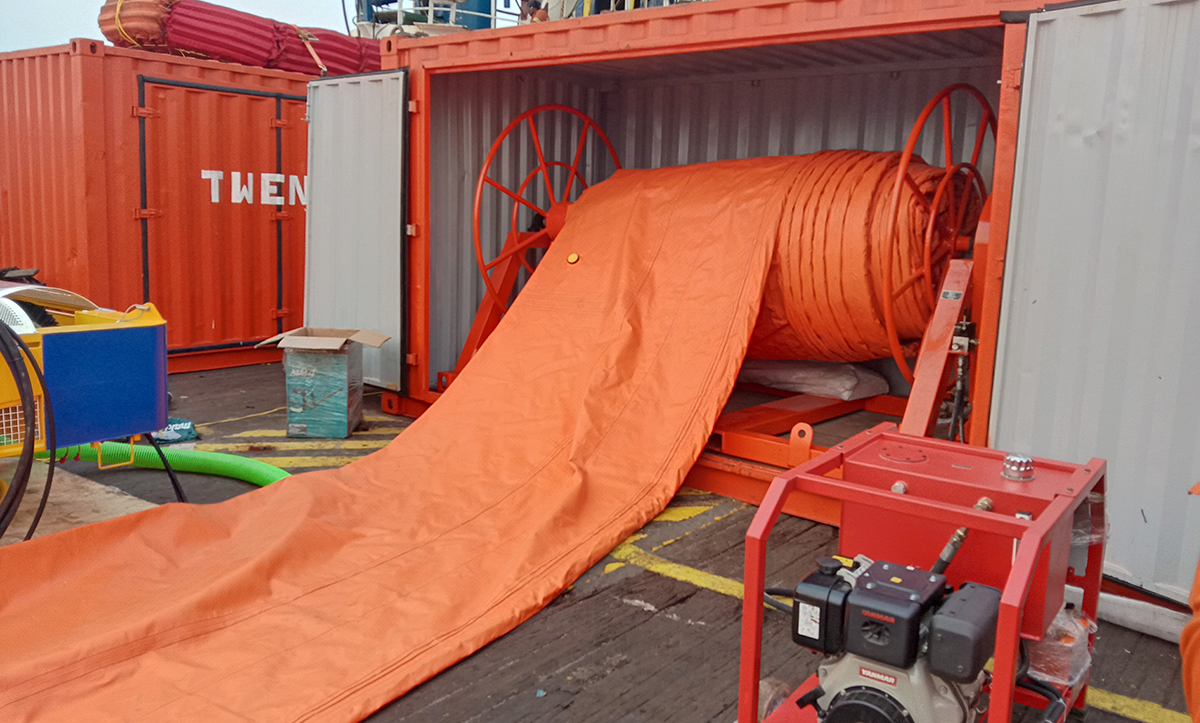

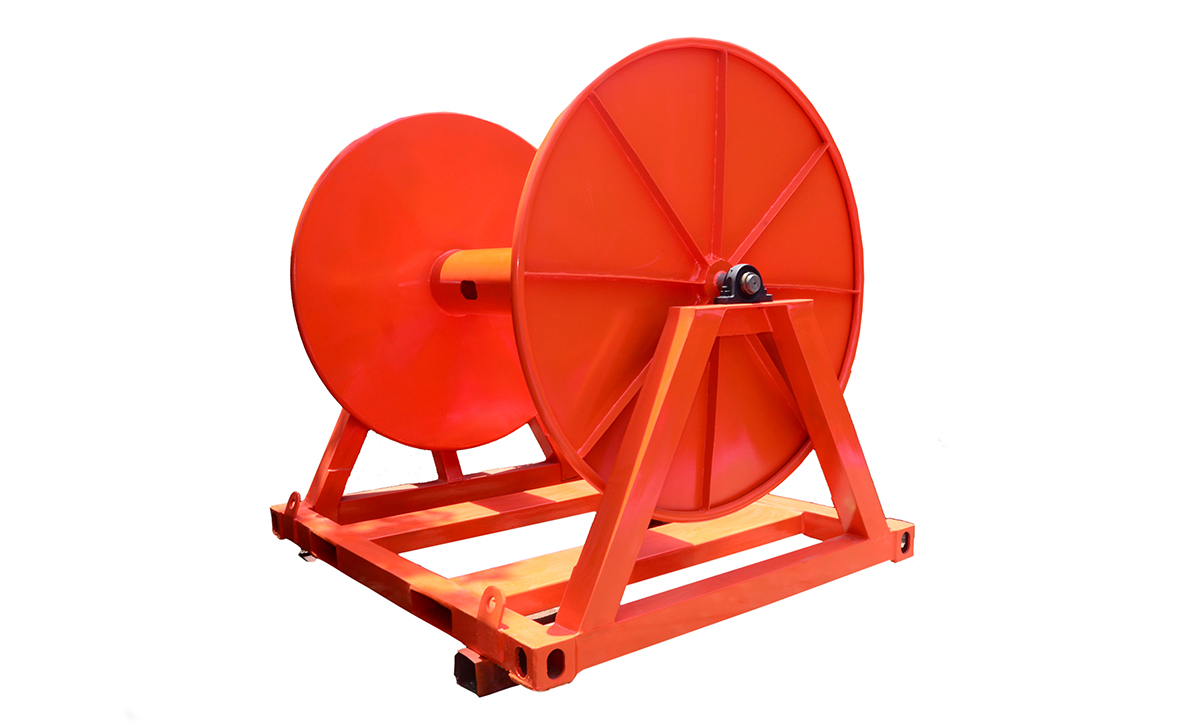

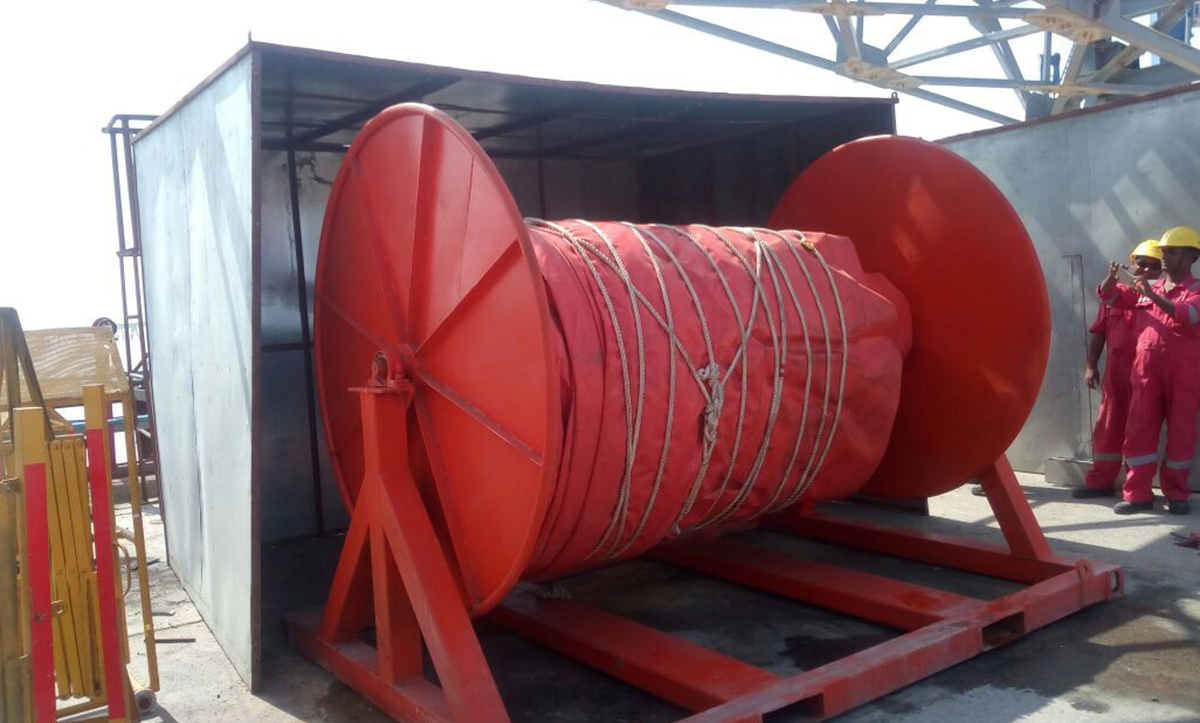

  • Working with Reel saves more manpowe
Specification SCMS-AB650 SCMS-AB800 SCMS-AB1000 SCMS-AB1200 SCMS-AB1500
Freeboard (mm) 250 300 400 400 600
Draft (mm) 400 500 600 800 900
Height (mm) 650 800 1000 1200 1500
Weight (kg/m) 3.5 4.0 4.5 4.7 5
Section Length 20 / 25 m
Boom Fabric PVC coated Nylon / Polyester, 800 gsm ±10%, Single layer
Tensile Strength >80 N/mm to 150 N/mm
Boom Color Orange / Red / Black
Boom Connector Extruded aluminium ASTM 962 standard, 1500 kgf / 5cm
Ballast Hot dipped galvanized chain
Buoyancy to Weight >10 : 1
Other Fabric Options PU / TPU / Neoprene / Hypalon (on demand)

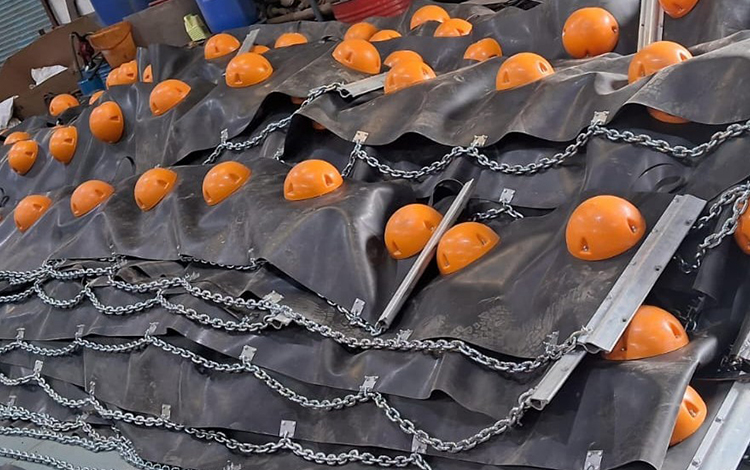

2. External Floatation Booms

  • Fits to long time use
  • Besieges oil spills and even floating debris and trash
  • Longer Life than others
  • Firm and solid in use
  • Wide application
Specification SCMS-PB350R SCMS-PB650R SCMS-PB900R
Freeboard (mm) 100 250 350
Draft (mm) 250 400 550
Height (mm) 350 650 900
Weight (kg/m) 5.0 7.0 9.0
Section Length 15 / 20 / 25 m
Boom Fabric PVC coated Polyester, belting fabric
Tensile Strength >180 N/mm
Boom Color Orange / Black
Boom Connector Extruded aluminium ASTM 962 standard, 1500 kgf / 5 cm
Ballast Hot dipped galvanized chain
Buoyancy to Weight 10 : 1
Floatation Buoy HDPE round / cylindrical filled with PU / EVA foam
Inside colour: Black / Orange

3. Filled Booms

  • Light Weight
  • Small size, easy transportation and storage
  • Applied with Reel set, Quick Rack, Working Boat
  • Saving more manpower and material resource
  • The thickness of flat fence boom is just 20mm
  • It weighs half of the column type boom
  • Buoy Material: EVA , PVC, column or flat foaming buoy
  • Colour: International Orange, Red, Yellow etc. distinct colours; Black one used in long period.
Specification SCMS-FB500 SCMS-FB750 SCMS-FB900 SCMS-FB1200
Freeboard (mm) 150 250 300 400
Draft (mm) 350 500 600 800
Height (mm) 500 750 900 1200
Weight (kg/m) 2.5 4.0 5.0 6.0
Section Length 15 / 20 / 25 m
Boom Fabric PVC coated Nylon / Polyester, 800 to 1400 gsm ±10%
Tensile Strength >80 N/mm to 150 N/mm
Boom Color Orange
Boom Connector Extruded aluminium ASTM 962 standard, 1500 kgf / 5 cm
Ballast Hot dipped galvanized chain
Buoyancy to Weight 2 : 1
Other Boom Fabric PU / TPU etc.
