Options

• The diesel engine unit can be supplied complete with a spark arrestor on the exhaust.
• The system can be supplied with a standard open topped 45 G barrel with a support ring to prevent the barrel from collapsing.

Hoses:

• Air Hose- 2”x 7 m semi-rigid withcam lock couplings.
• Oil Hose- 2”x10 m semi rigid with cam lock couplings.

Engine:

• Type: Single Cylinder, air cooled diesel
• Start: with recoil hand start & electric start.
• Power: 7 BHP @ 3600 rpm.
• Fuel Capacity: 4 litres
• Construction: Mounted on Mild Steel frame

Vacuum Pump:

• Speed: 1300 rpm Max. Free Air: 156 m3/hour.
• Oil Tank Capacity: 2.3 Liters Weight: 53 Kg

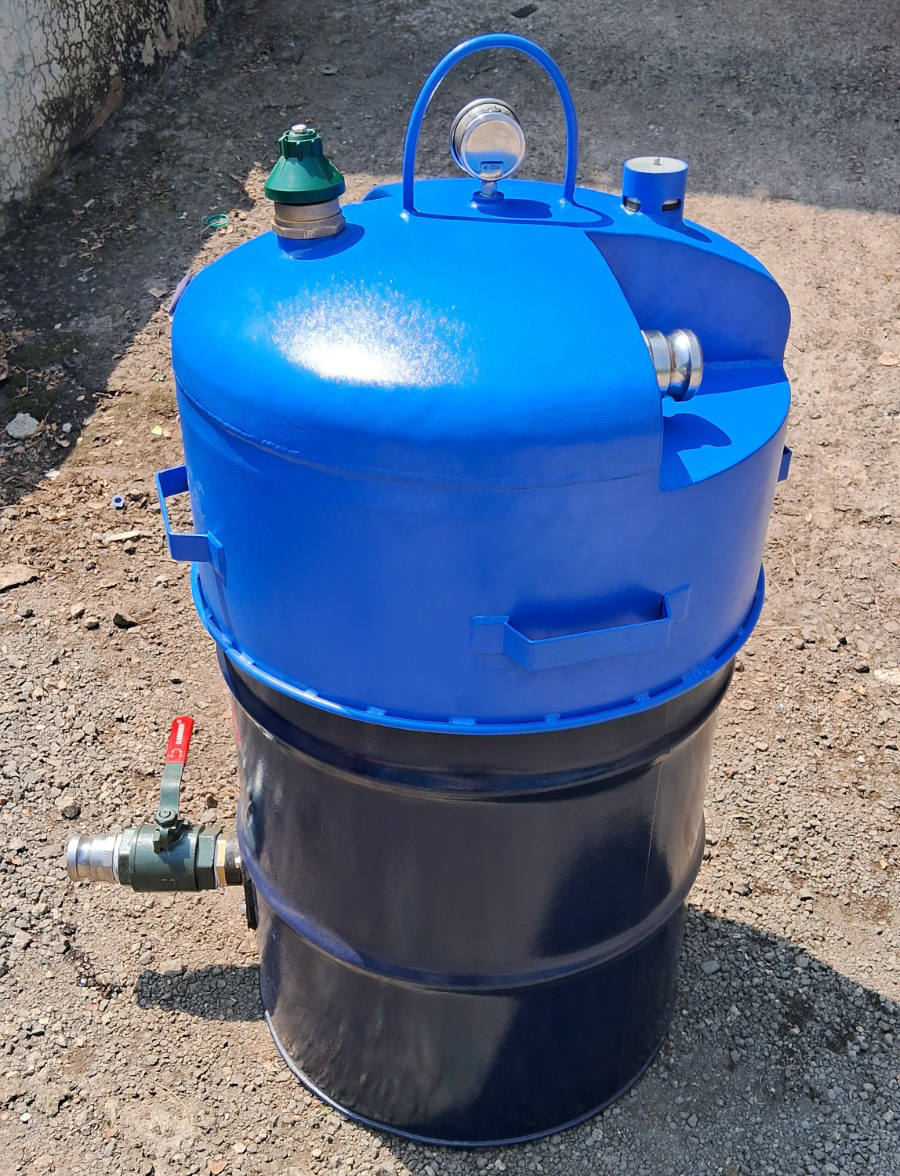

Vacuum Head:

The Vacuum Head has been designed to shut off the vacuum to the drum when full, and to seal itself to prevent over-spill into the vacuum pump. When the liquid level is reduced in the drum, the vacuum will reset to vacuum operation. MOC of Vacuum Head is Marine Grade Aluminium.

Performance:

Vacuum: 0.5 Bar (adjustable)

Lance:

The ergonomic design of the lance with shoulder strap enables it to be used with easy and for extended periods. The handles can be arranged for right or left handed use. The tools have beendesigned to be easily changed to improve performance.
