Oil Recovery Skimmers

  • Home
  • Products
  • Oil Recovery Skimmers

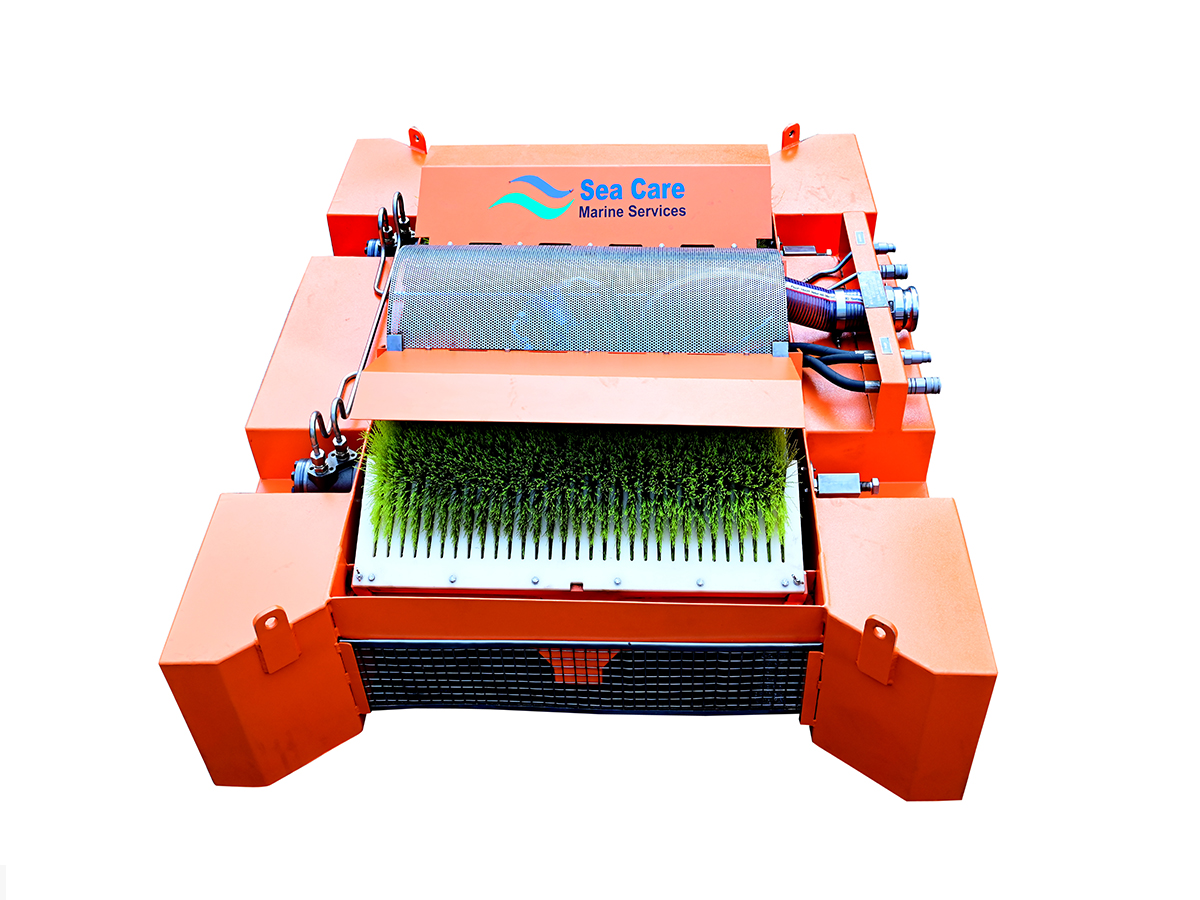

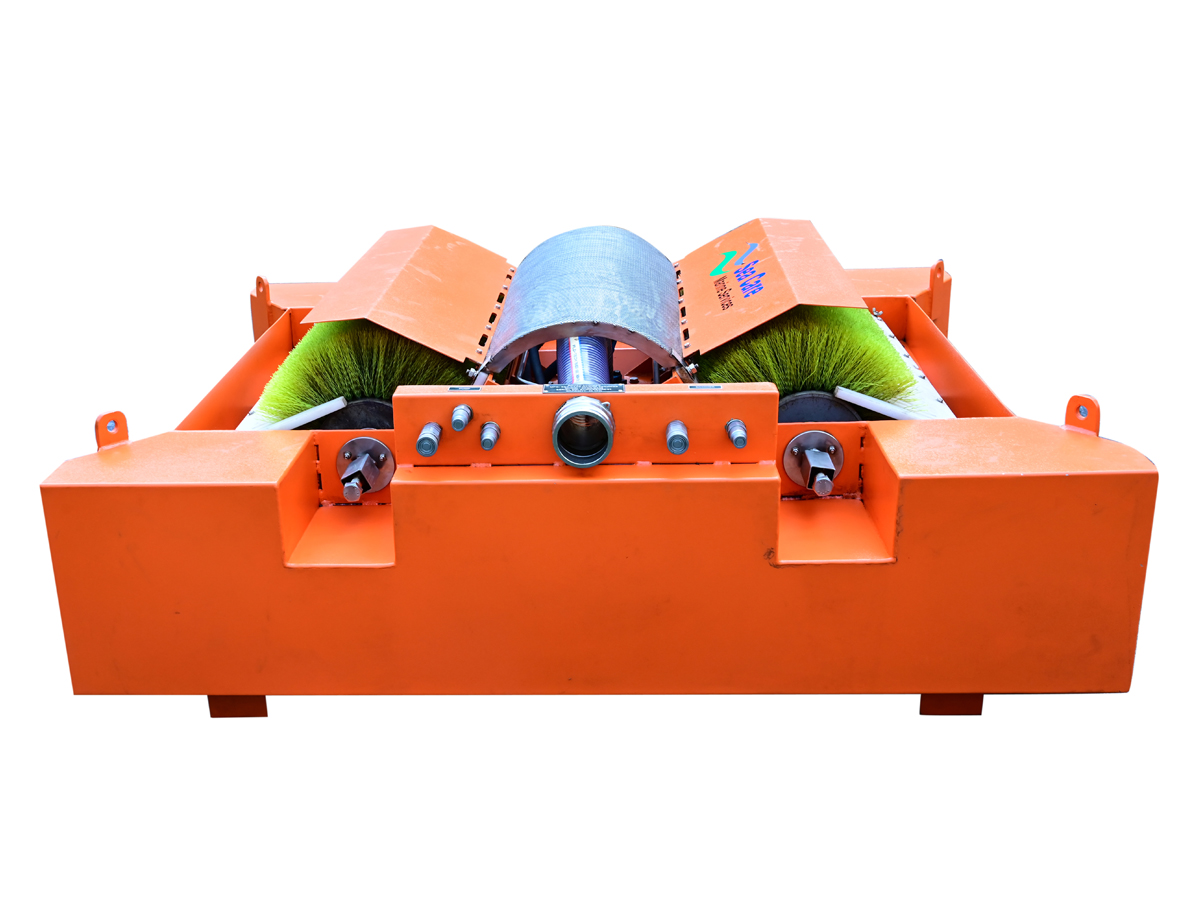

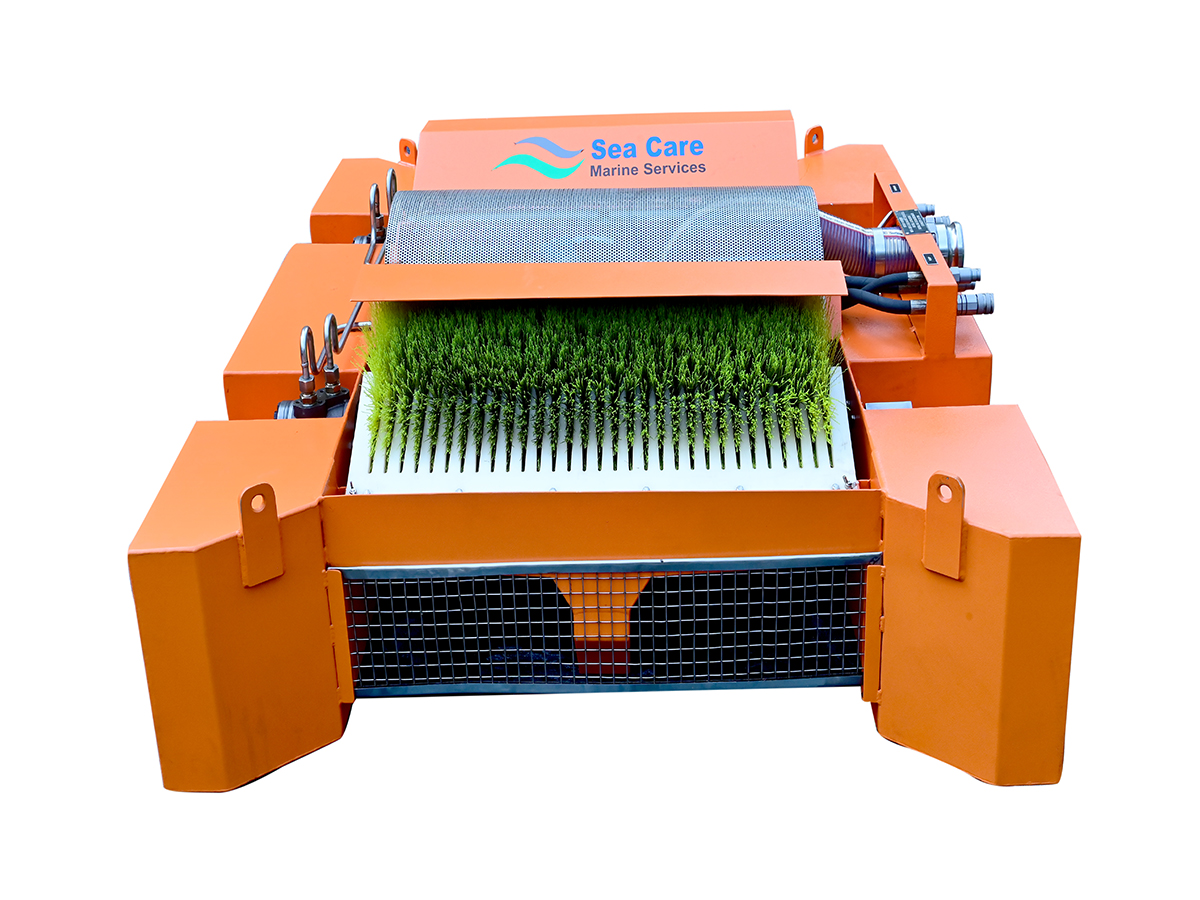

1. Brush Skimmers

  • Fit to use in various water area
  • Absorb different floating oils and chemicals by its skimming head when spill occurs
  • Oleophilic and Hydrophobe characteristics
  • Low water proportion (below 5%)
Specification SCMS-BS10 SCMS-BS20 SCMS-BS40
Recovery Rate 5–10 m3/HR 15–20 m3/HR 30–40 m3/HR
Number of Brush Bank 1 1 2
Weight 40 kg 60 kg 100 kg
Dimensions (L × W × H) 95 × 100 × 25 cm 110 × 120 × 30 cm 150 × 140 × 50 cm
Body Construction Marine Grade Aluminum with Paint
Brush Material PBT (Polybutylene Terephthalate)
Outlet Gauge 2 inch with cam-lock 2 inch with cam-lock 3 inch with cam-lock
Oil Transfer Pump Power required: < 10 HP
SCMS SC02 pump / SCMS F50 flexible impeller pump 		Power required: 10 HP
SCMS SC02 pump / SCMS F50 flexible impeller pump 		Power required: > 15 HP
SCMS SC03 pump / SCMS F65 flexible impeller pump
Other Capacity Custom capacity skimmers can be manufactured as per customer requirement

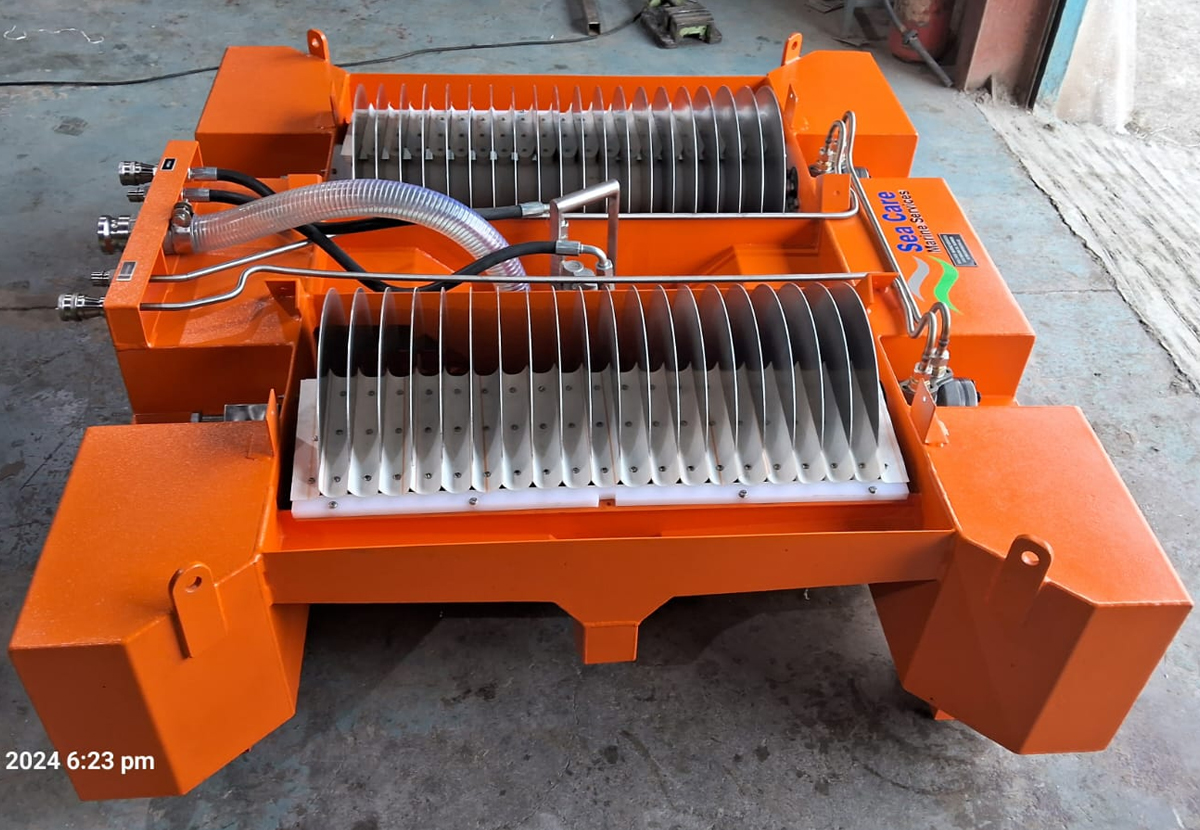

2. Disk Skimmers

  • Fits to use in various water area
  • Absorb different floating oils and chemicals by its skimming head when spill occurs
  • Can float in 150~200mm of water and sealed flotation makes them unsinkable.
  • The Disks are motor driven (by air or hydraulics)
  • Simple to install, operate and maintain
Specification SCMS-DS5 SCMS-DS10 SCMS-DS20
Recovery Rate 5 m3/HR 10 m3/HR 20 m3/HR
Number of Brush Bank 1 1 1 or 2
Weight 30 kg 70 kg 100 kg
Dimensions (L × W × H) 95 × 100 × 50 cm 110 × 112 × 50 cm 150 × 140 × 70 cm
Body Construction Marine Grade Aluminum with Paint
Brush Material PP / Aluminium
Outlet Gauge 1.5 inch with cam-lock 2 inch with cam-lock 2 inch with cam-lock
Oil Transfer Pump Power required: < 5 HP
SCMS SC02 pump / SCMS F50 flexible impeller pump 		Power required: 10 HP
SCMS SC02 pump / SCMS F50 flexible impeller pump 		Power required: > 10 HP
SCMS SC03 or SC04 pump
Other Capacity We can make specific capacity skimmer systems as per customer choice

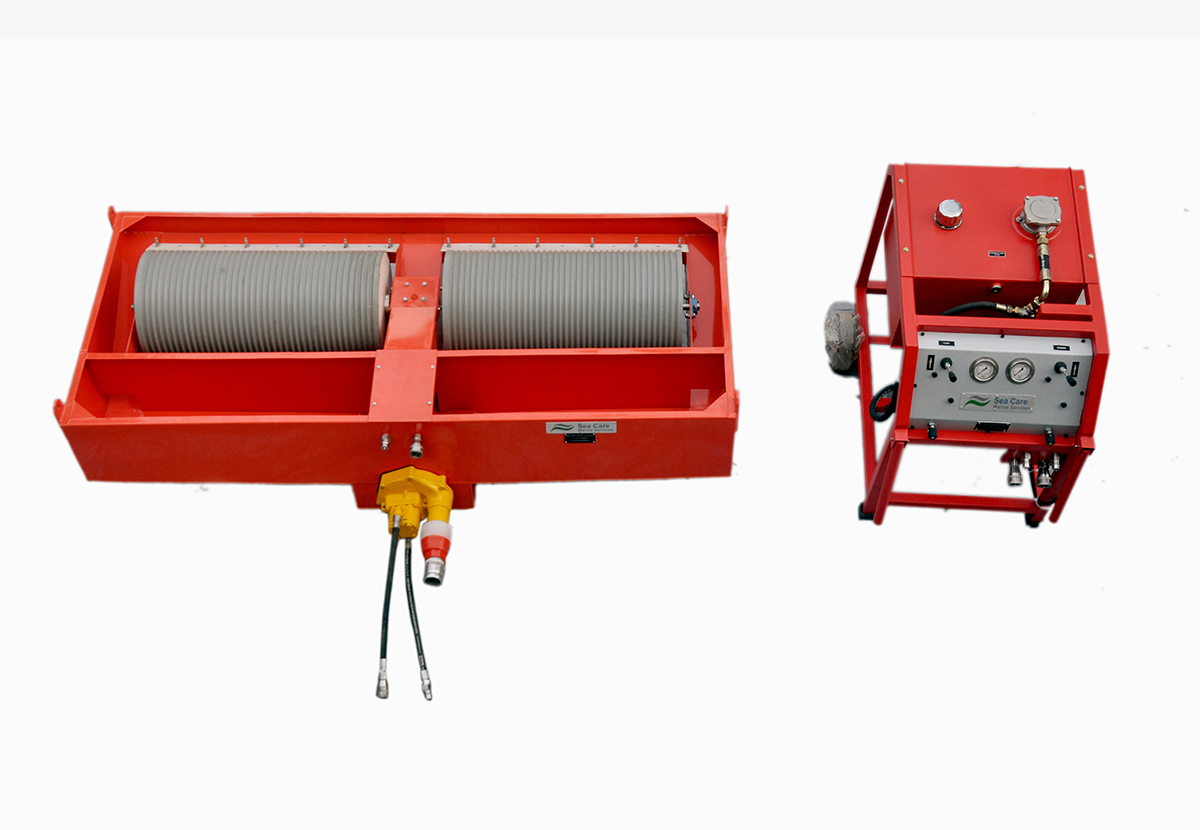

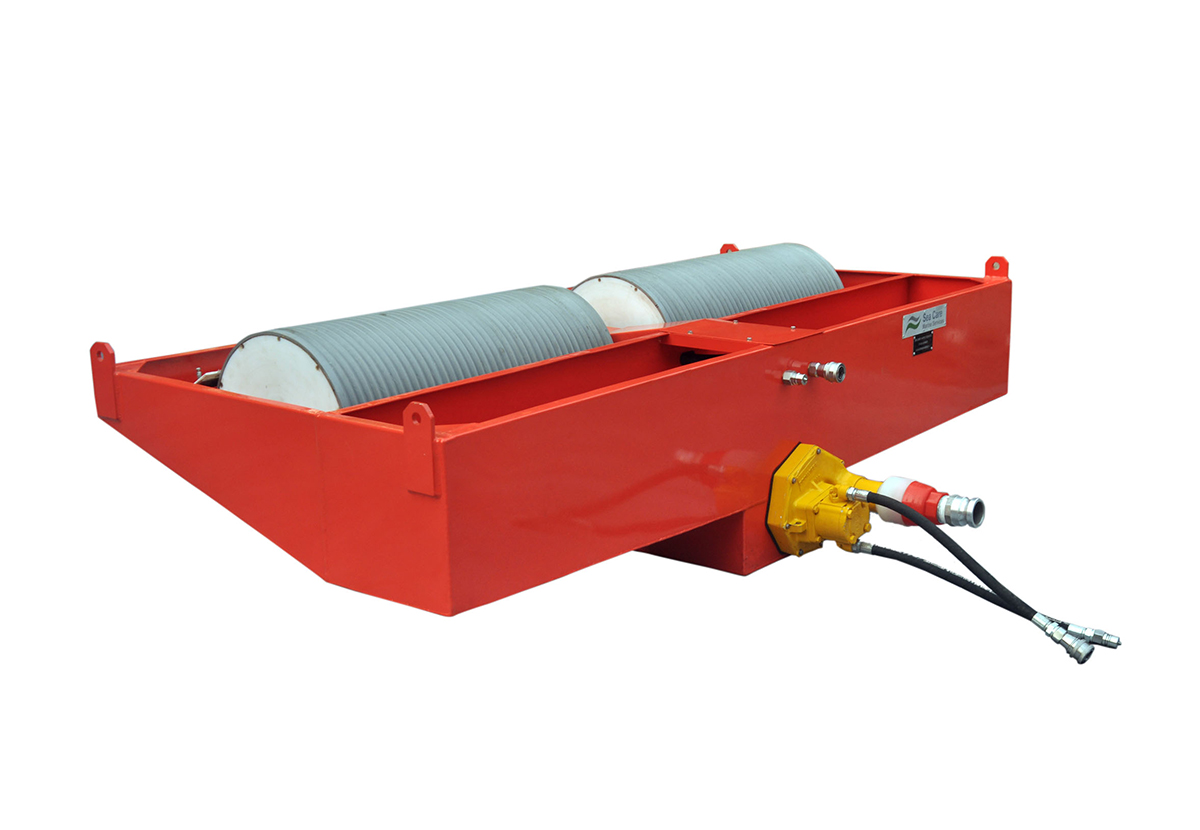

3. Drum Skimmers

  • Drum oil skimmer manufacturers sell sea water resistant aluminum / Stainless Steelmade items
  • Drum, Brush skimmers fit to use in various water area
  • Attract different floating oils and chemicals by its skimming head
  • Oleophilic and Hydrophobic characteristics
  • Low water proportion (below 5%)
Specification SCMS-DRS10 SCMS-DRS20 SCMS-DRS30
Recovery rate 10 m3/HR 20 m3/HR 30 m3/HR
Number of Drum Bank 1 2 4
Weight 30 kgs 70 kgs 100 kgs
Dimensions(LxWxH) 110x100x50 cm 130x130x50 cm 160x160x70 cm
Body construction Maine Grade Aluminum with Paint
Brush material PP / Aluminium
Outlet gauge 2” with cam-lock 2”/3” with cam-lock 3”/4” with cam-lock
Oil transfer pump Power require: < 10HP
SCMS SC02 pump / SCMS F50 flexible impeller pump 		Power require: 15 HP
SCMS SC02 pump
SCMS F65 flexible impeller pump 		Power require: >25HP
SCMS SC03 pump
Other Capacity: We can make Specific capacity Skimmers System as per customer choice

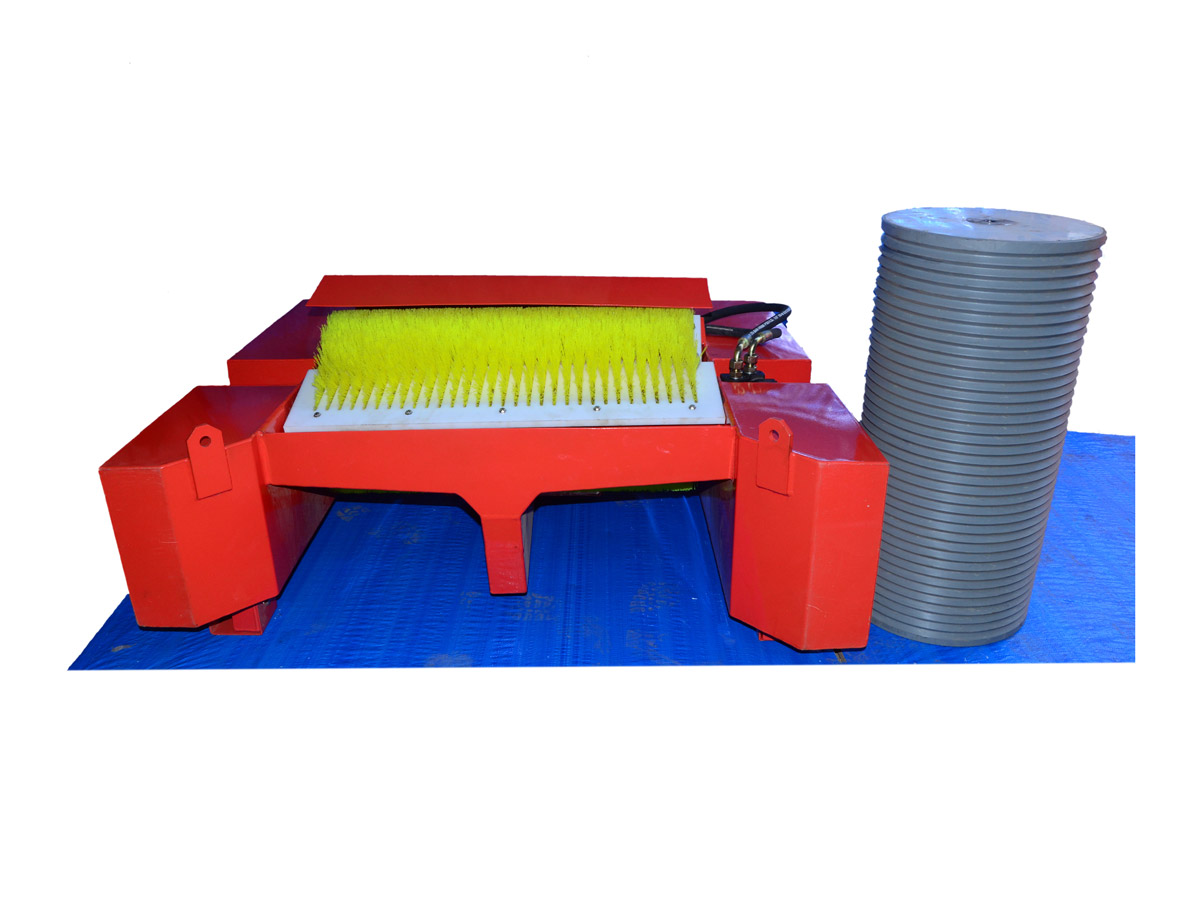

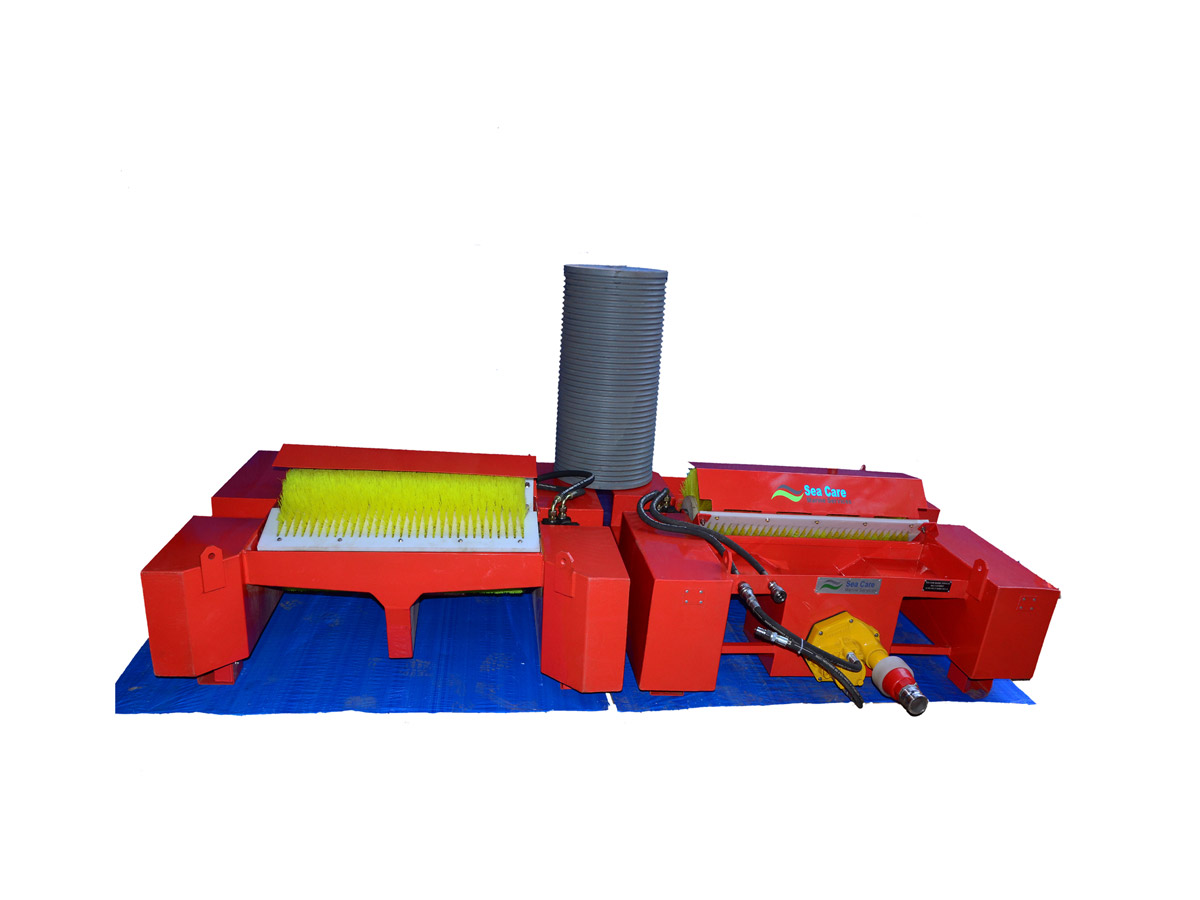

4. Multi-Function Skimmers

  • Lorem Ipsum is simply dummy text of the printing
  • typesetting industry. Lorem Ipsum has been the industry's
  • standard dummy text ever since the 1500s, when an unknown printer took a
  • galley of type and scrambled it to make a type specimen book. It has
Specification SCMS-MS20 SCMS-MS45 SCMS-MS150
RSCMSvery rate 20 m3/HR 45 m3/HR 150 m3/HR
Number of Banks 1 2 4
Weight 50 kgs 70 kgs 100 kgs
Dimensions(LxWxH) 110x10x50 cm 130x130x50 cm 160x160x70 cm
Body construction Maine Grade Aluminum with Paint
Outlet gauge 2 inch with cam-lock 2 inch with cam-lock 3 inch with cam-lock
Oil transfer pump Power require: >10 HP
SCMS SC02 pump 		Power require: 10 HP
SCMS SC02 pump 		Power require: >25 HP
SCMS SC03 pump
Other Capacity: We can make Specific capacity Skimmers System as per customer choice

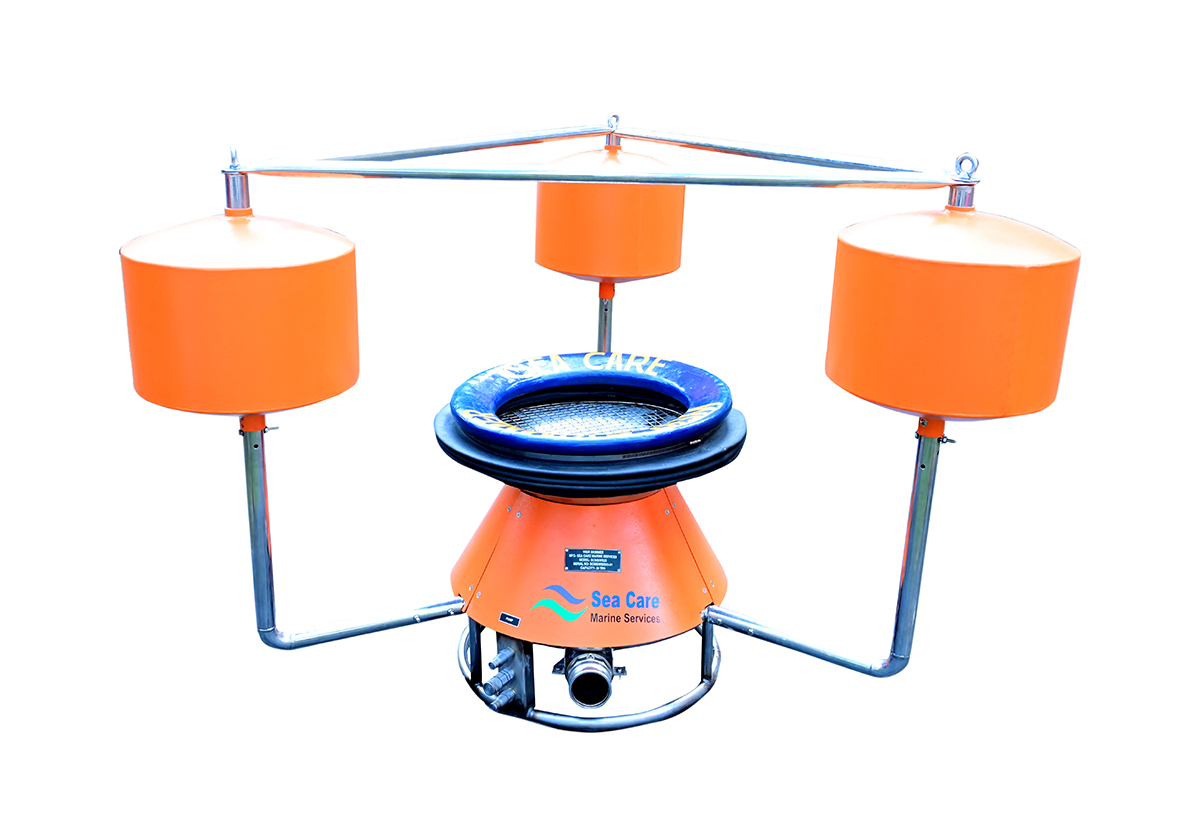

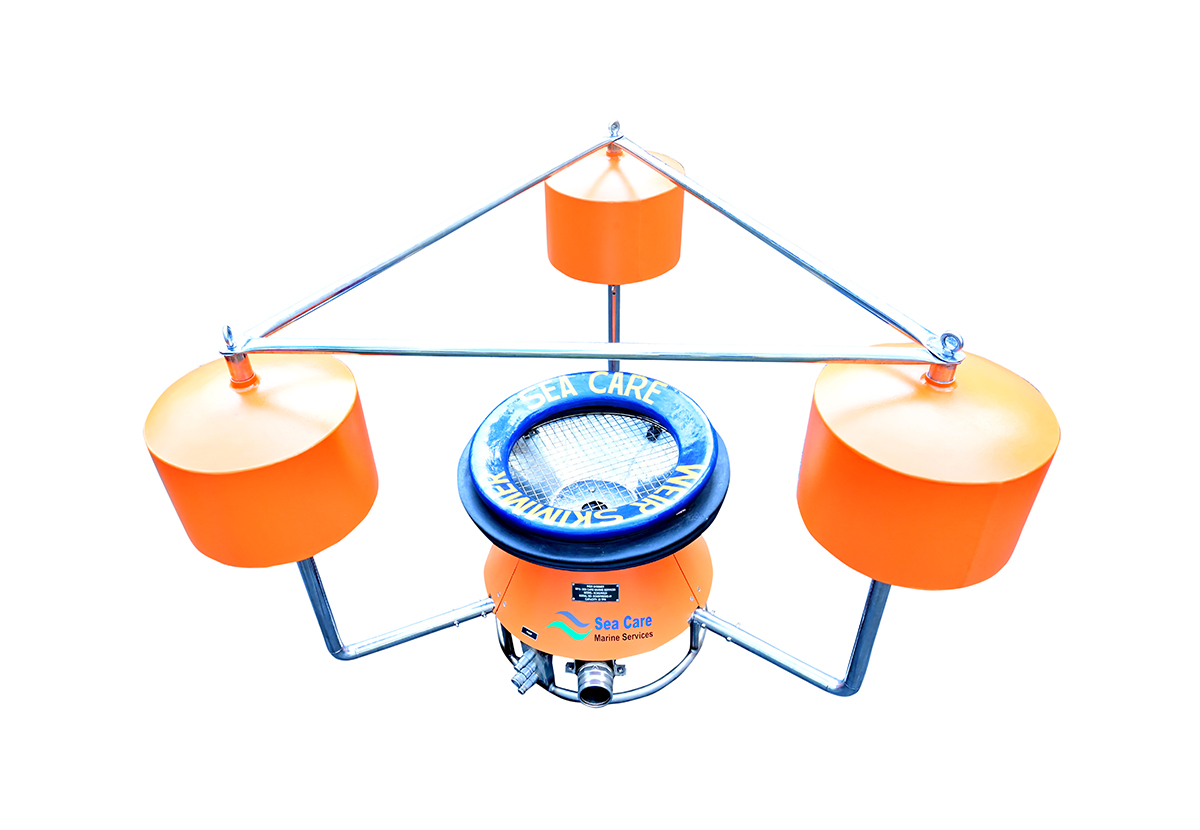

5. Weir Skimmers

  • Applied to habour, bay , and open seas
  • Float stably, get up and down by water
  • Absorption Capacity : up to 250 M3 / hr
  • Flexible high capacity
  • Free-floating skimmer
  • Designed with Dia: 900 mm inlet
Specification SCMS-WS20 SCMS-WS90 SCMS-WS250
RSCMSvery rate Up to 20m3/hr Up to 90m3/hr 250 m3/hr
Draft (mm) 330 1000 1000
Weight 45 kgs 90 kgs 100 kgs
Dimensions( LxWxH ) 50 cm Dia. 150x150x100 cm 200x200x150 cm
Body construction SS304
Outlet gauge
3 cylindrical / sphere floats
Number of float 3 inch with cam-lock 3 inch with cam-lock 4 inch with cam-lock
Oil transfer pump Power require: SCMS-PP10
SCMS SC02S Screw pump 		Power require: SCMS-PP25
SCMS SC03 hydraulic impeller pump 		Power require: SCMS-PP40
SCMS SC04 hydraulic impeller pump
Other Capacity: We can make Specific capacity Weir Skimmers as per customer choice
